Pegasus 17"
UV dtf printer
Unparalleled Precision. Vibrant Colors.

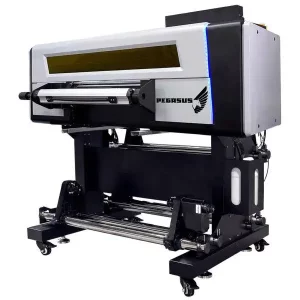

The Pegasus 17" UV DTF Printer
Elevate Your Printing Capabilities
The industrial Pegasus UV DTF Printer uses ultra violet light to print directly onto a DTF transfer that can be applied onto hard, non-porous surfaces.
With cutting-edge UV printing technology, the Pegasus expands the horizons of your printing requirements, offering vibrant, long-lasting colors that bring your designs to life with striking brilliance. Bid farewell to conventional printing constraints, as the Pegasus empowers you to print and transfer onto various hard substrates effortlessly.
Key Features:
- Ultra Violet Direct to Film (UV DTF) Printing: The Pegasus 17-Inch UV DTF Printer allows direct printing
- UV LED Technology: Utilizing UV LED curing technology, this printer ensures fast drying times and enhanced durability of prints. UV LED curing also enables printing on a wide range of materials, including heat-sensitive hard substrates, without causing any damage.
- A2 Format Printing: With a 17-inch print width, the Pegasus printer offers an ideal print area for all your favorite substrates
- 6 Color Printing: The TX800 print heads within this unit have 6 channels which allow expanded gamut. Additional color spectrum outside of CMYK are Light Cyan and Light Magenta. Vibrant designs pop off the page even more!
- Installation: Remote Installation & Training w/ Onsite Upgrade Option
- Warranty: 6 Months + Extendable
Specifications & Requirements
- Print Heads: Epson TX800 <3>
- Print Modes: 4pass / 6 pass / 8 pass <30+ SF/Hr on Production 8 Pass>
- Arrangement: Cyan, Light Cyan, Magenta, Light Magenta, Yellow, Black, White, Varnish (1CMYK + 1W + 1V)
- Roll Media Width: 17” (42 CM)
- # of Nozzles / # of Heads: (180 x 6 rows)/3 Epson heads
- Ink Type: UV DTF
- Operating System: Windows 10 or Above
- Print Driver: Print EXP
- Rip: Flexi 22
- Power Requirements: 15 Amp 110 Volt [Printer]
- Operating Temperature: 68°F-75°F
- Channels Color: 1C1M1Y1K1LC1LM + 6V + 6W
- Operating Humidity Range: 45% -75%
- Maximum Print Width: 16.4 inches
- Printer Size: 42.5” x 35.5” x 47.5”
- Recommended Footprint: 8’x6’
